Normal distribution

The normal distribution is one of the cornerstones of probability theory and statistics, because of the role it plays in the Central Limit Theorem, because of its analytical tractability and because many real-world phenomena involve random quantities that are approximately normal (e.g., errors in scientific measurement).

It is often called Gaussian distribution, in honor of Carl Friedrich Gauss (1777-1855), an eminent German mathematician who gave important contributions towards a better understanding of the normal distribution.

Sometimes it is also referred to as "bell-shaped distribution", because the graph of its probability density function resembles the shape of a bell.

Plot of the normal density

As you can see from the above plot of the density of a normal distribution, the density is symmetric around the mean (indicated by the vertical line). As a consequence, deviations from the mean having the same magnitude, but different signs, have the same probability. The density is also very concentrated around the mean and becomes very small by moving from the center to the left or to the right of the distribution (the so called "tails" of the distribution). This means that the further a value is from the center of the distribution, the less probable it is to observe that value.

The remainder of this lecture gives a formal presentation of the main characteristics of the normal distribution, dealing first with the special case in which the distribution has zero mean and unit variance, then with the general case, in which mean and variance can take any value.

The standard normal distribution

The adjective "standard" indicates the special case in which the mean is equal to zero and the variance is equal to one.

Definition

Standard normal random variables are characterized as follows.

Definition Let X be an absolutely continuous random variable. Let its support be the whole set of real numbers:[eq1]We say that X has a standard normal distribution if its probability density function is[eq2]

The following is a proof that [eq3] is indeed a legitimate probability density function:

Proof

The function [eq4] is a legitimate probability density function if it is non-negative and if its integral over the support equals 1. The former property is obvious, while the latter can be proved as follows:[eq5]

Expected value

The expected value of a standard normal random variable X is[eq6]

Proof

It can be derived as follows:[eq7]

Variance

The variance of a standard normal random variable X is[eq8]

Proof

It can be proved with the usual variance formula ([eq9]):[eq10]

Moment generating function

The moment generating function of a standard normal random variable X is defined for any t in R:[eq11]

Proof

It is derived by using the definition of moment generating function:[eq12]The integral above is well-defined and finite for any t in R. Thus, the moment generating function of X exists for any t in R.

Characteristic function

The characteristic function of a standard normal random variable X is[eq13]

Proof

By the definition of characteristic function, we have[eq14]Now, take the derivative with respect to $t$ of the characteristic function:[eq15]Putting together the previous two results, we obtain[eq16]The only function that satisfies this ordinary differential equation (subject to the condition [eq17]) is[eq18]

Distribution function

There is no simple formula for the distribution function [eq19] of a standard normal random variable X because the integral[eq20]cannot be expressed in terms of elementary functions. Therefore, it is usually necessary to resort to special tables or computer algorithms to compute the values of [eq21]. The lecture entitled Normal distribution values discusses these alternatives in detail.

The normal distribution in general

While in the previous section we restricted our attention to the special case of zero mean and unit variance, we now deal with the general case.

Definition

The normal distribution with mean mu and variance sigma^2 is characterized as follows.

Definition Let X be an absolutely continuous random variable. Let its support be the whole set of real numbers:[eq22]Let $mu in U{211d} $ and [eq23]. We say that X has a normal distribution with mean mu and variance sigma^2, if its probability density function is[eq24]

We often indicate the fact that X has a normal distribution with mean mu and variance sigma^2 by[eq25]

To better understand how the shape of the distribution depends on its parameters, you can have a look at the density plots at the bottom of this page.

Relation between standard and non-standard normal distribution

The following proposition provides the link between the standard and the general case.

Proposition If X has a normal distribution with mean mu and variance sigma^2, then[eq26]where Z is a random variable having a standard normal distribution.

Proof

This can be easily proved using the formula for the density of a function of an absolutely continuous variable ([eq27] is a strictly increasing function of Z, since $sigma $ is strictly positive):[eq28]

Thus, a normal distribution is standard when $mu =0$ and $sigma ^{2}=1$.

Expected value

The expected value of a normal random variable X is[eq29]

Proof

The proof is a straightforward application of the fact that X can we written as a linear function of a standard normal variable:[eq30]

Variance

The variance of a normal random variable X is[eq31]

Proof

It can be derived as follows:[eq32]

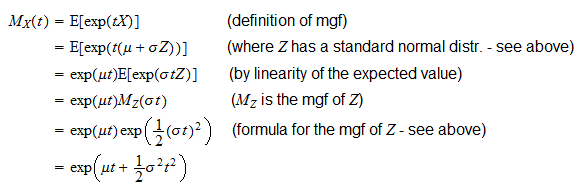

Moment generating function

The moment generating function of a normal random variable X is defined for any t in R:[eq33]

Proof

The mgf is derived as follows:[eq34]It is defined for any t in R because the moment generating function of Z is defined for any t in R.

Characteristic function

The characteristic function of a normal random variable X is[eq35]

Proof

The derivation is similar to the derivation of the moment generating function:[eq36]

Distribution function

The distribution function [eq37] of a normal random variable X can be written as[eq38]where [eq39] is the distribution function of a standard normal random variable Z (see above). The lecture entitled Normal distribution values provides a proof of this formula and discusses it in detail.

Density plots

This section shows the plots of the densities of some normal random variables. These plots help us to understand how the shape of the distribution changes by changing its parameters.

Plot 1 - Changing the mean

The following plot contains the graphs of two normal probability density functions:

By changing the mean from $mu =0$ to $mu =1$, the shape of the graph does not change, but the graph is translated to the right (its location changes).

Normal density plot 1

Plot 2 - Changing the standard deviation

The following plot shows two graphs:

By increasing the standard deviation from $sigma =1$ to $sigma =2$, the location of the graph does not change (it remains centered at 0), but the shape of the graph changes (there is less density in the center and more density in the tails).

Normal density plot 2

More details

The following lectures contain more material about the normal distribution.

Normal distribution values

How to tackle the numerical computation of the distribution function

Multivariate normal distribution

A multivariate generalization of the normal distribution, frequently encountered in statistics

Quadratic forms involving normal variables

Discusses the distribution of quadratic forms involving normal random variables

Linear combinations of normal variables

Discusses the important fact that normality is preserved by linear combinations

Solved exercises

Below you can find some exercises with explained solutions.

Exercise 1

Let X be a normal random variable with mean $mu =3$ and variance $sigma ^{2}=4$. Compute the following probability:[eq40]

Solution

First of all, we need to express the above probability in terms of the distribution function of X:[eq41]

Then, we need to express the distribution function of X in terms of the distribution function of a standard normal random variable Z:[eq42]

Therefore, the above probability can be expressed as[eq43]where we have used the fact that [eq44], which has been presented in the lecture entitled Normal distribution values.

Exercise 2

Let X be a random variable having a normal distribution with mean $mu =1$ and variance $sigma ^{2}=16$. Compute the following probability:[eq45]

Solution

We need to use the same technique used in the previous exercise (express the probability in terms of the distribution function of a standard normal random variable):[eq46]where we have found the value [eq47] in a normal distribution table.

Exercise 3

Suppose the random variable X has a normal distribution with mean $mu =1$ and variance $sigma ^{2}=1$. Define the random variable Y as follows:[eq48]Compute the expected value of Y.

Solution

Remember that the moment generating function of X is[eq49]Therefore, using the linearity of the expected value, we obtain[eq50]
